Shop-Welded Modular Steel · Rapid Deployment

Factory-built modules. Field-set fast.

Shop-welded modular steel tank systems fabricated under controlled factory conditions, then field-assembled to compress schedules and cut on-site labor. Engineered for water, wastewater, and industrial storage where speed and quality both matter.

Build Your Quote → Talk to an Expert
200K+
Sq. Ft. Fabrication
AWS D1.1
Certified Welding
ISO 9001
Quality Management
Weeks
Not Months

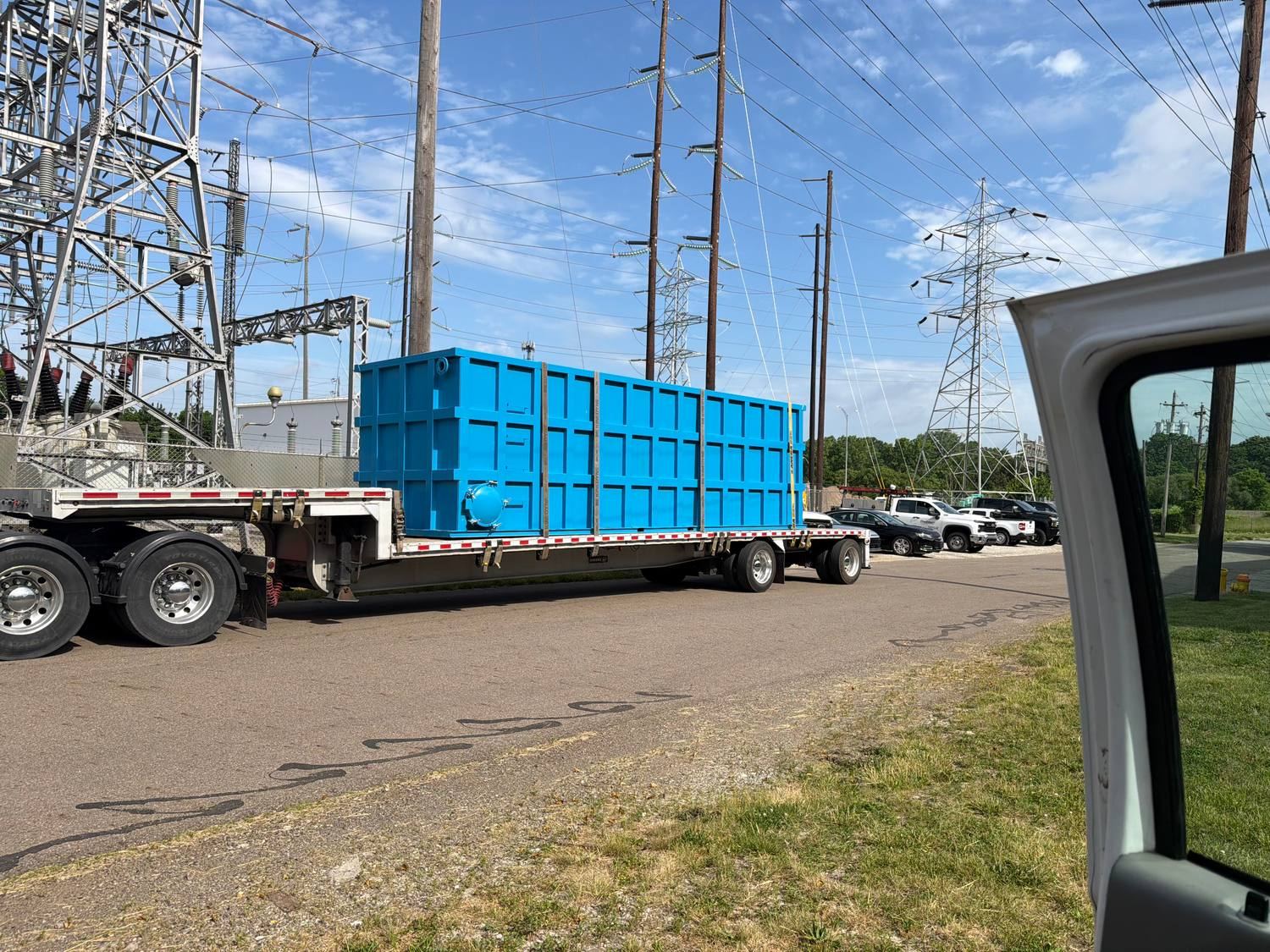

Blue modular bolted steel tank loaded on a flatbed trailer, coated and ready to ship from the plant
Welding
AWS D1.1
How Modular Works

Controlled shop. Compressed field.

Welding, coating, and QA happen in the plant under automated lines and certified procedures. Modules ship to site and are field-set and compression-sealed, with no field welding — less weather risk, less rework, faster commissioning.

FABRICATION

Shop-Welded Construction

AWS D1.1 · Automated Lines

Full-penetration welds laid under controlled conditions with consistent heat input and inspection — not field-improvised in wind and rain.

  • WeldingAWS D1.1 certified
  • QAISO 9001 documented
  • CoatingShop-applied lines
Configure / Inquire →
DEPLOYMENT

Rapid Field Assembly

Crane-Set · No Field Weld

Modules arrive ready to set. Field crews assemble and seal rather than fabricate, cutting weeks off the schedule and reducing site labor exposure.

  • ScheduleCompressed vs. field-built
  • Site LaborReduced footprint
  • RiskLower weather exposure
Configure / Inquire →
FIT

Application-Matched

Water / Wastewater / Industrial

Sized and specified for the service — potable, equalization, process, or industrial — with the same forensic spec review applied to every order.

  • ServiceWater / WW / Industrial
  • ReviewForensic spec check
  • SupportLifecycle inspection
Configure / Inquire →
Why Modular

Speed without cutting corners.

Modular delivery is about moving fabrication risk off the jobsite and into a controlled plant — where welds are inspected, coatings cure properly, and QA is documented before anything ships.

  • Documented QA/QC
    Every weld and coating step recorded in the shop, so what arrives on site is already proven.
  • Weather-Independent Quality
    Critical fabrication never depends on a clear-sky day at the jobsite.
  • Forensic Spec Review
    Service chemistry, loads, and codes validated before a single module is cut.
Close-up of a modular bolted steel tank end wall showing the reinforced panel grid and a bolted circular manway
Field-Proven

Fabricated. Coated. Ready to ship.

Modular steel tanks completed in our shop and staged for delivery to municipal and industrial sites nationwide.

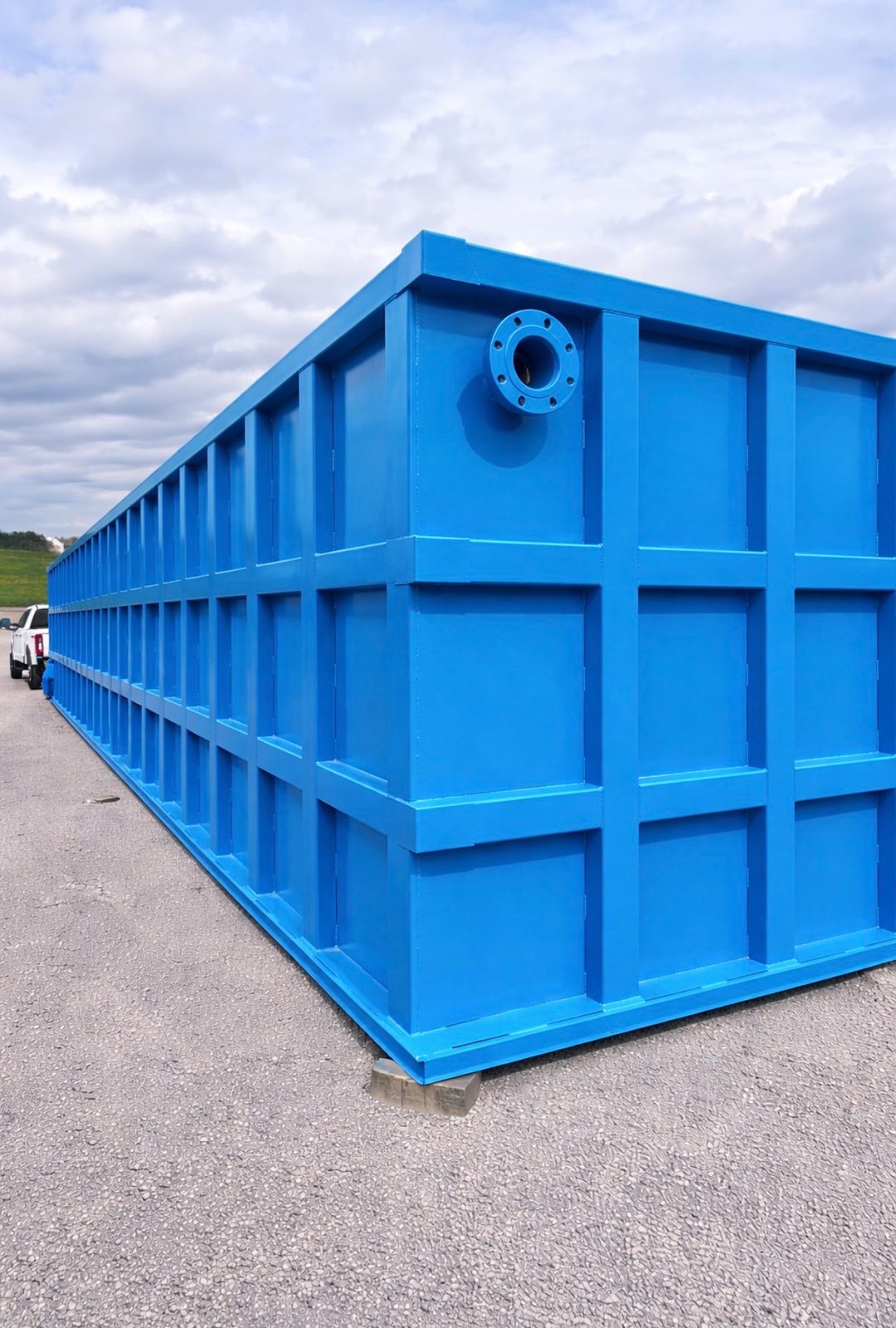

Long blue modular steel tank staged outdoors in the yard, top-corner flanged nozzle and reinforced panel grid receding to the horizon

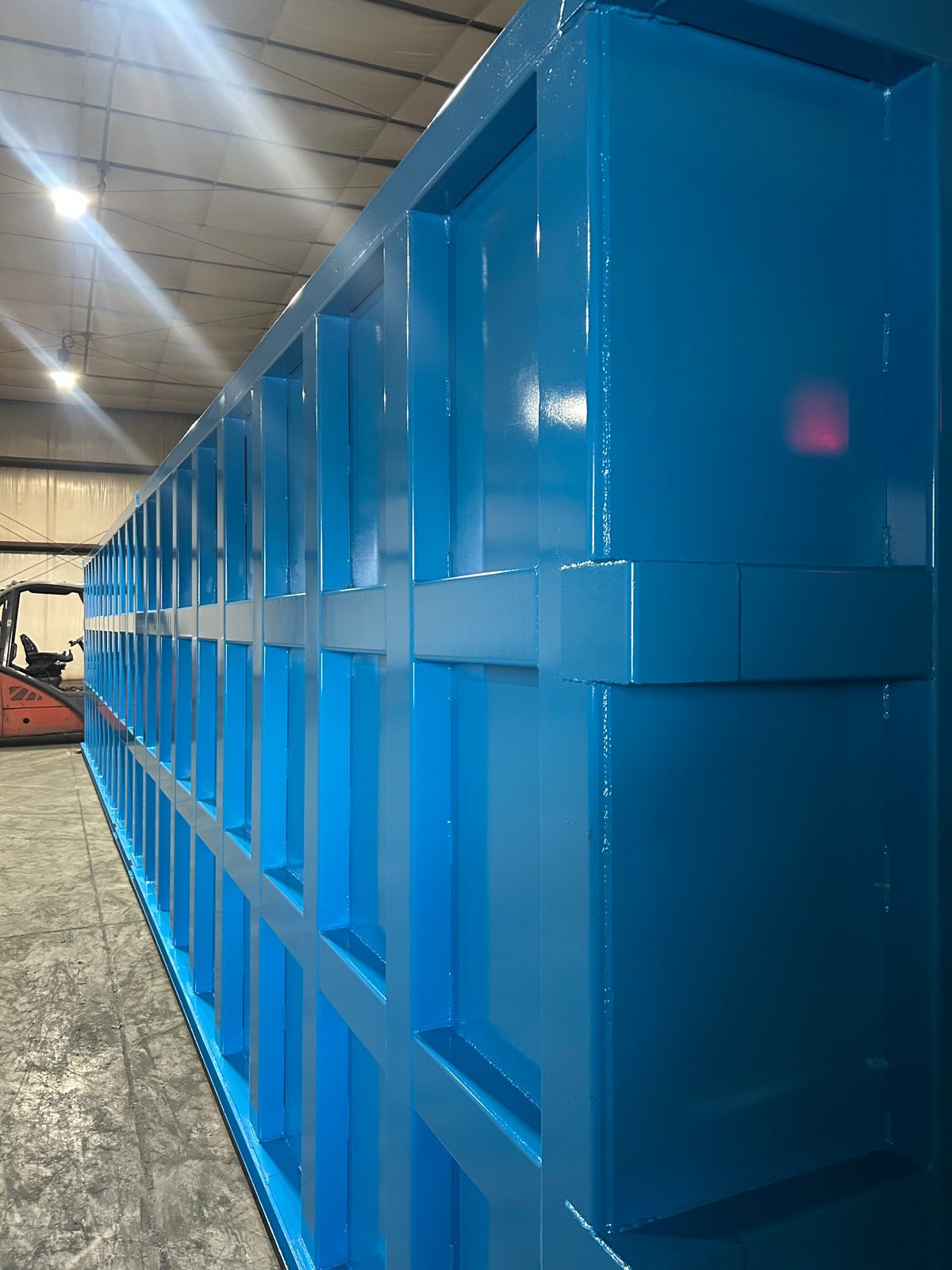

Freshly coated blue modular steel tank running the length of the fabrication shop, glossy panels reflecting the overhead lights

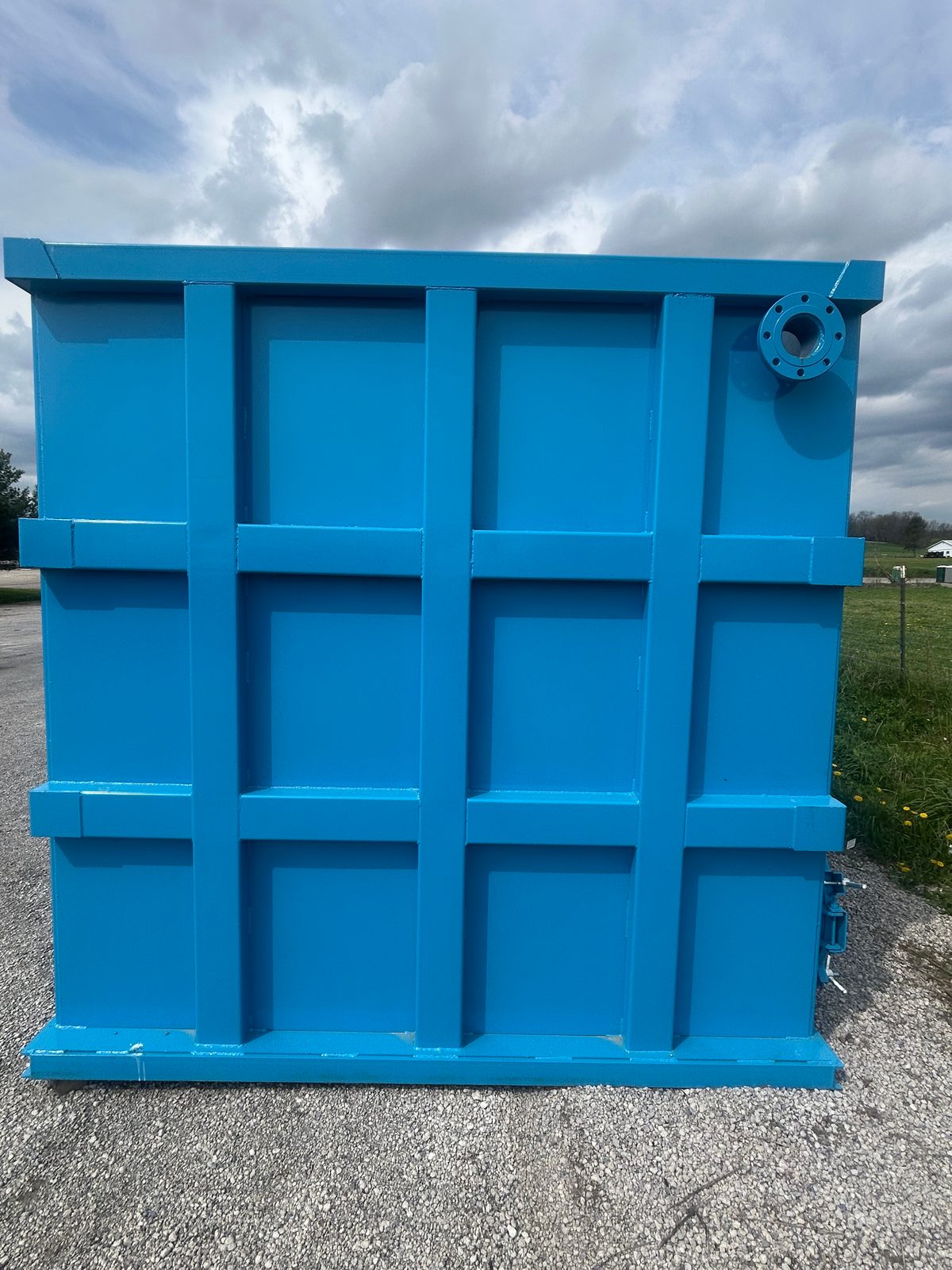

End wall of a finished blue modular steel tank with its reinforced panel grid and a corner flanged nozzle, outdoors under a cloudy sky

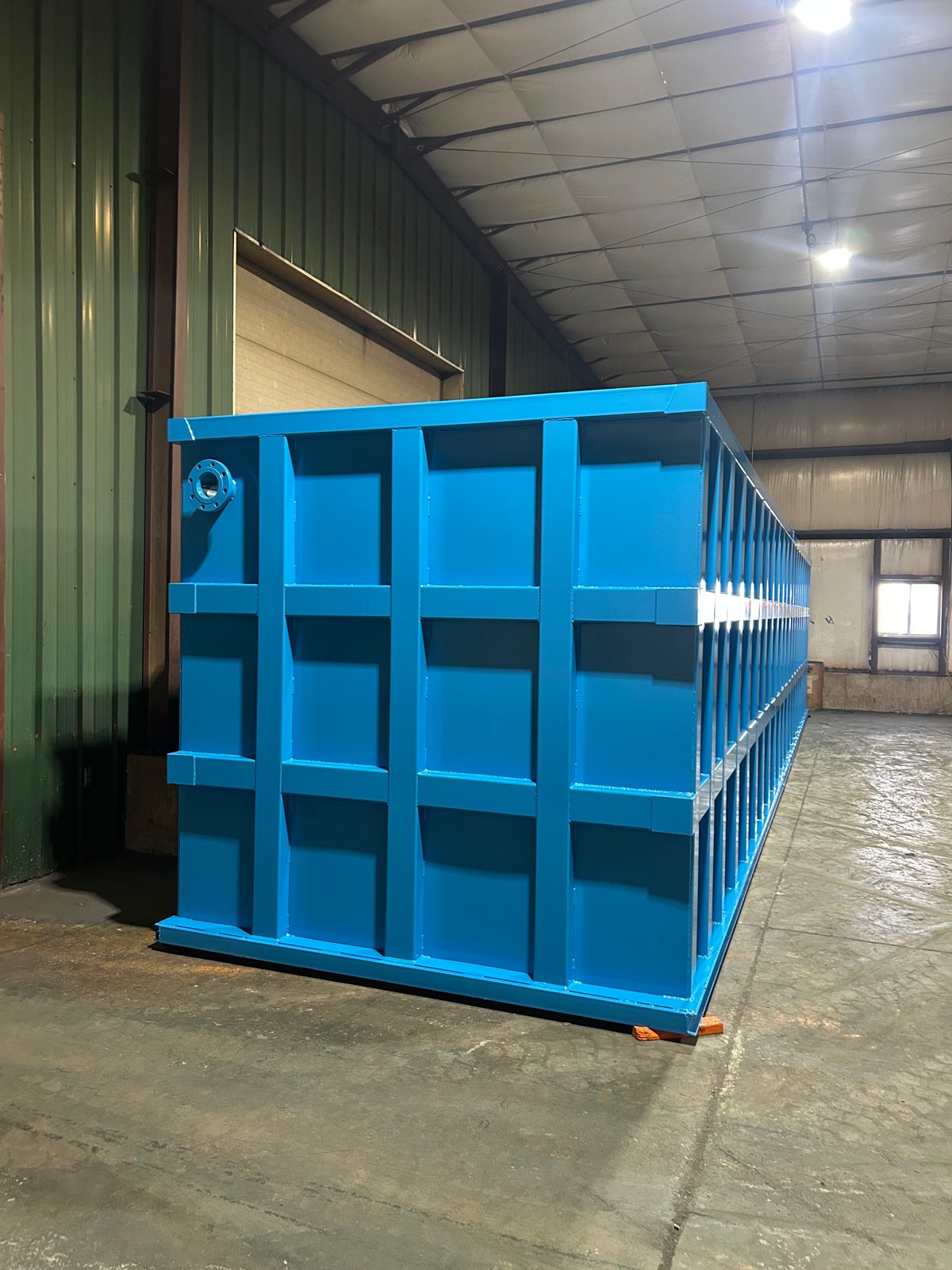

Three-quarter view of a long blue modular steel tank inside the shop, lifting lug on the near corner

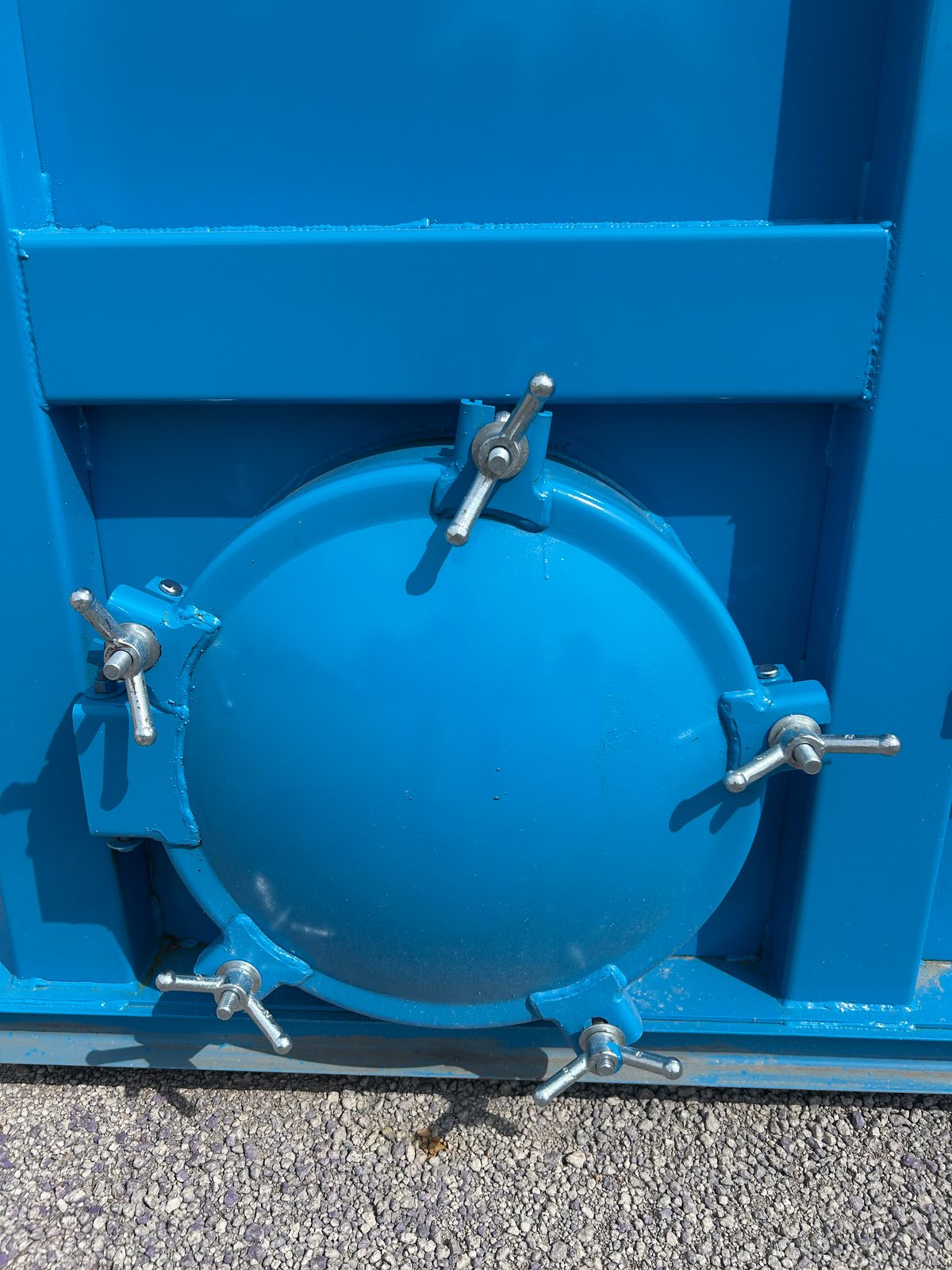

Close-up of a bolted circular manway cover secured with wing-nut clamps on a bright blue modular steel tank in sunlight

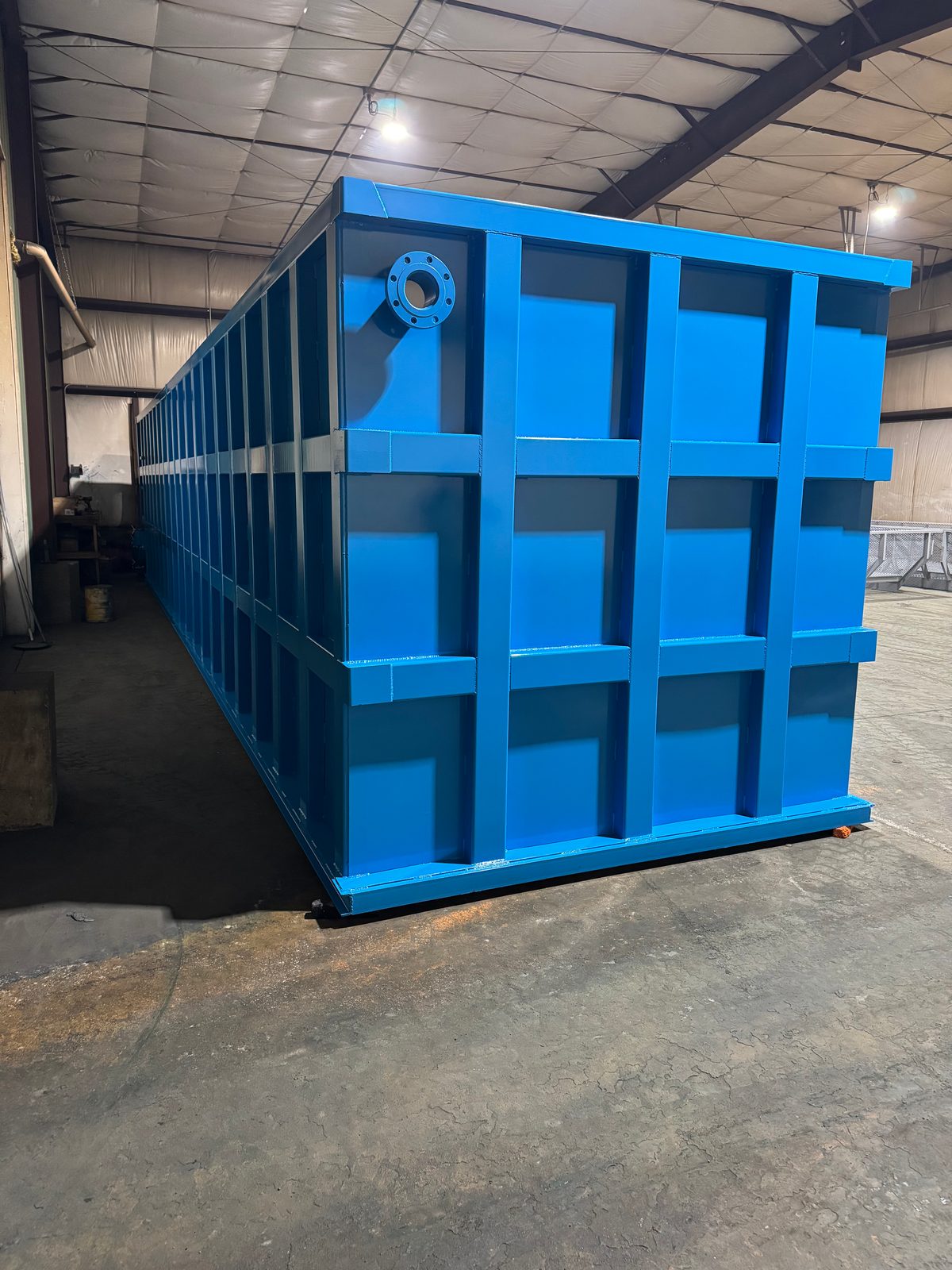

Long blue modular steel tank in the shop with a top-corner flanged nozzle and the reinforced panel grid running its full length

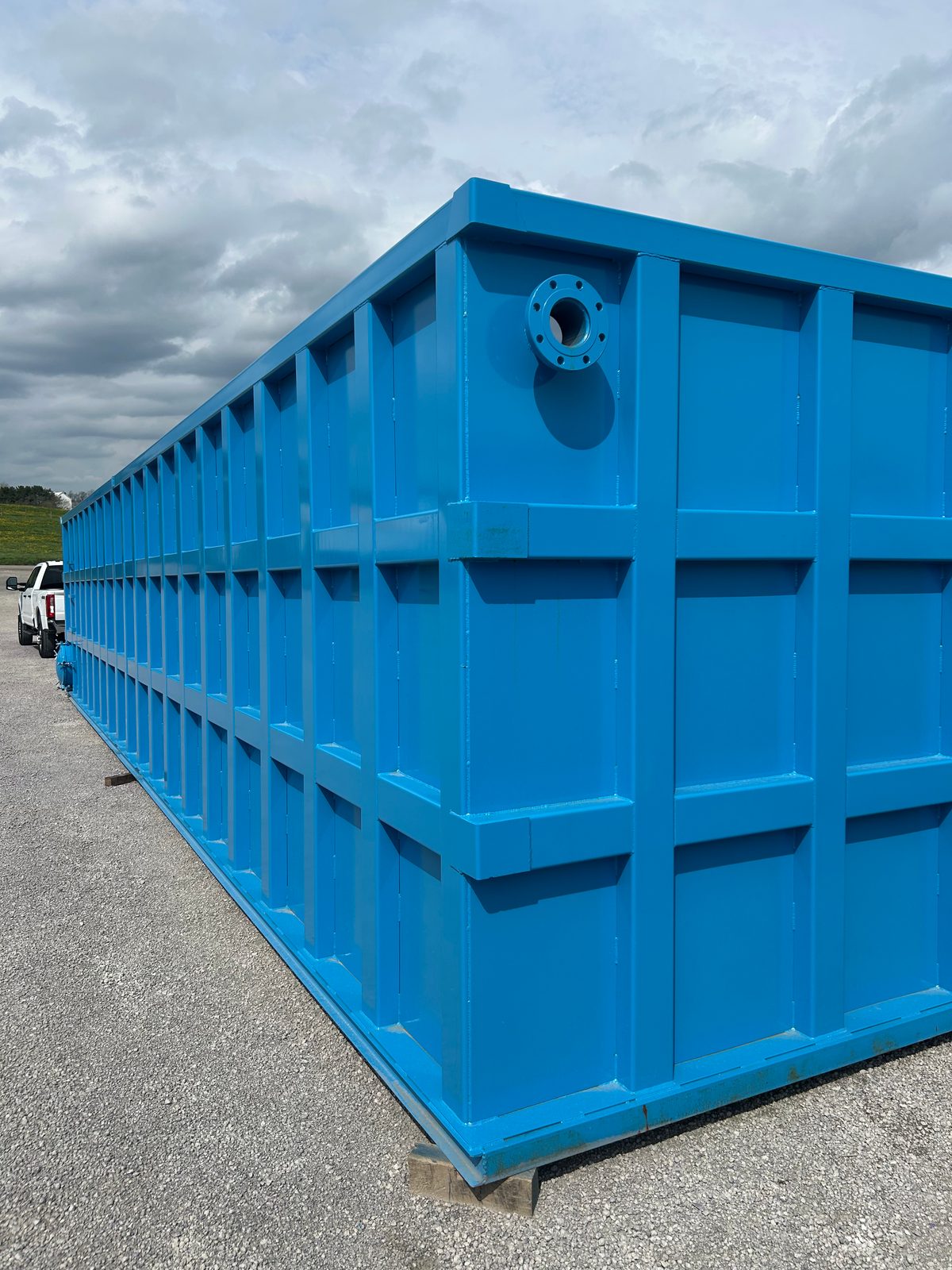

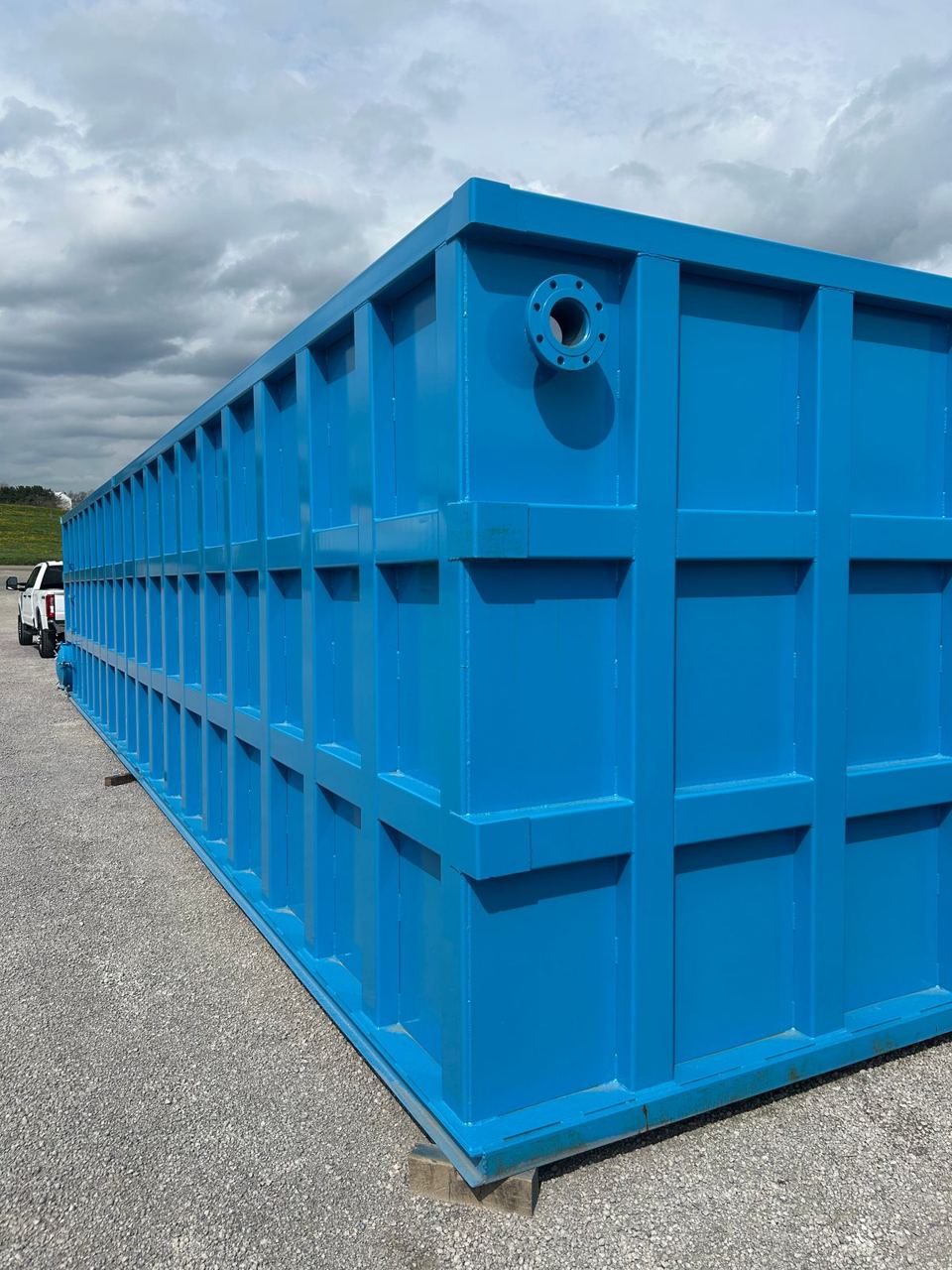

Large blue modular steel tank staged outdoors with a pickup truck alongside for scale, top nozzle and bolted panel seams

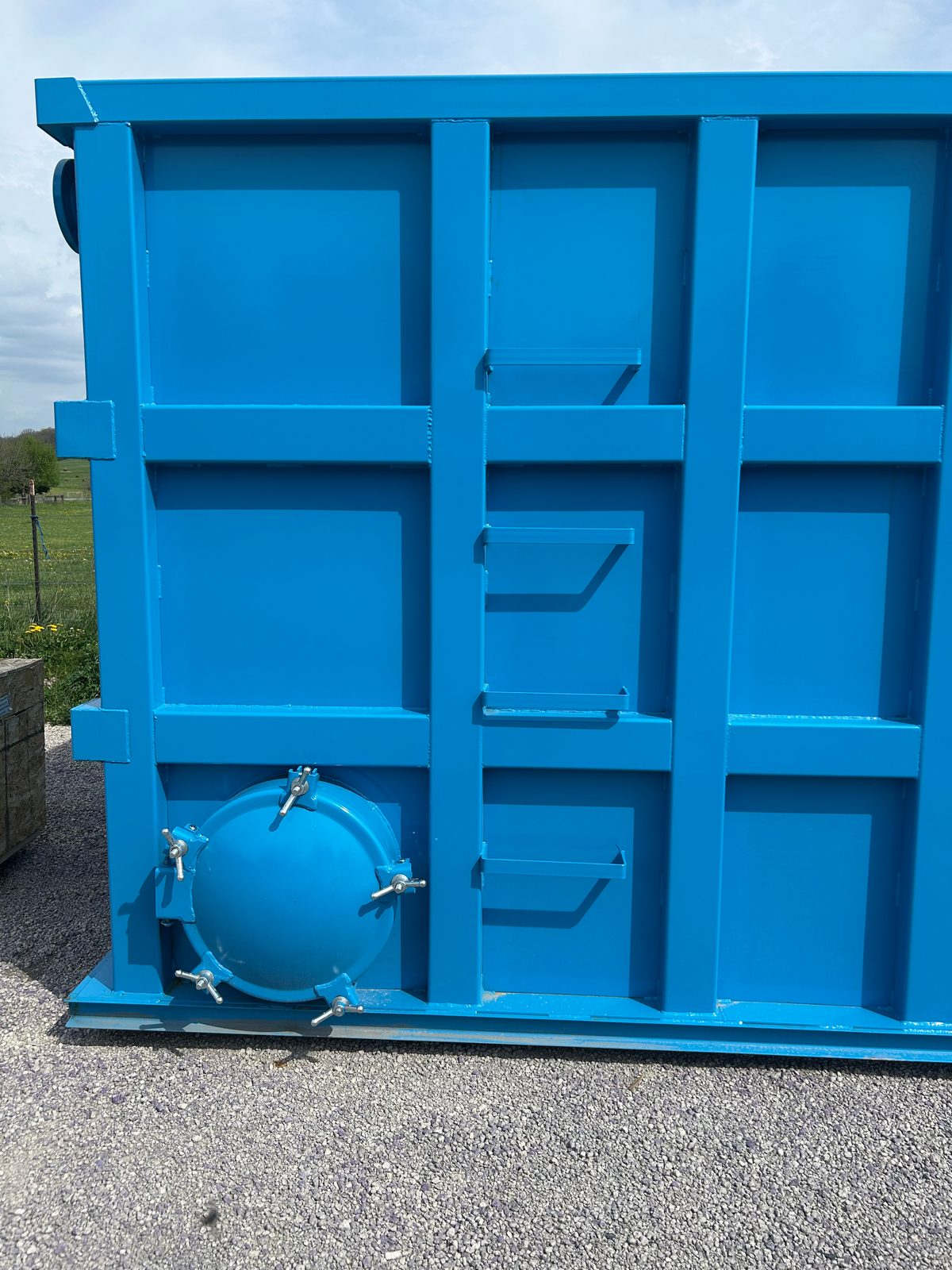

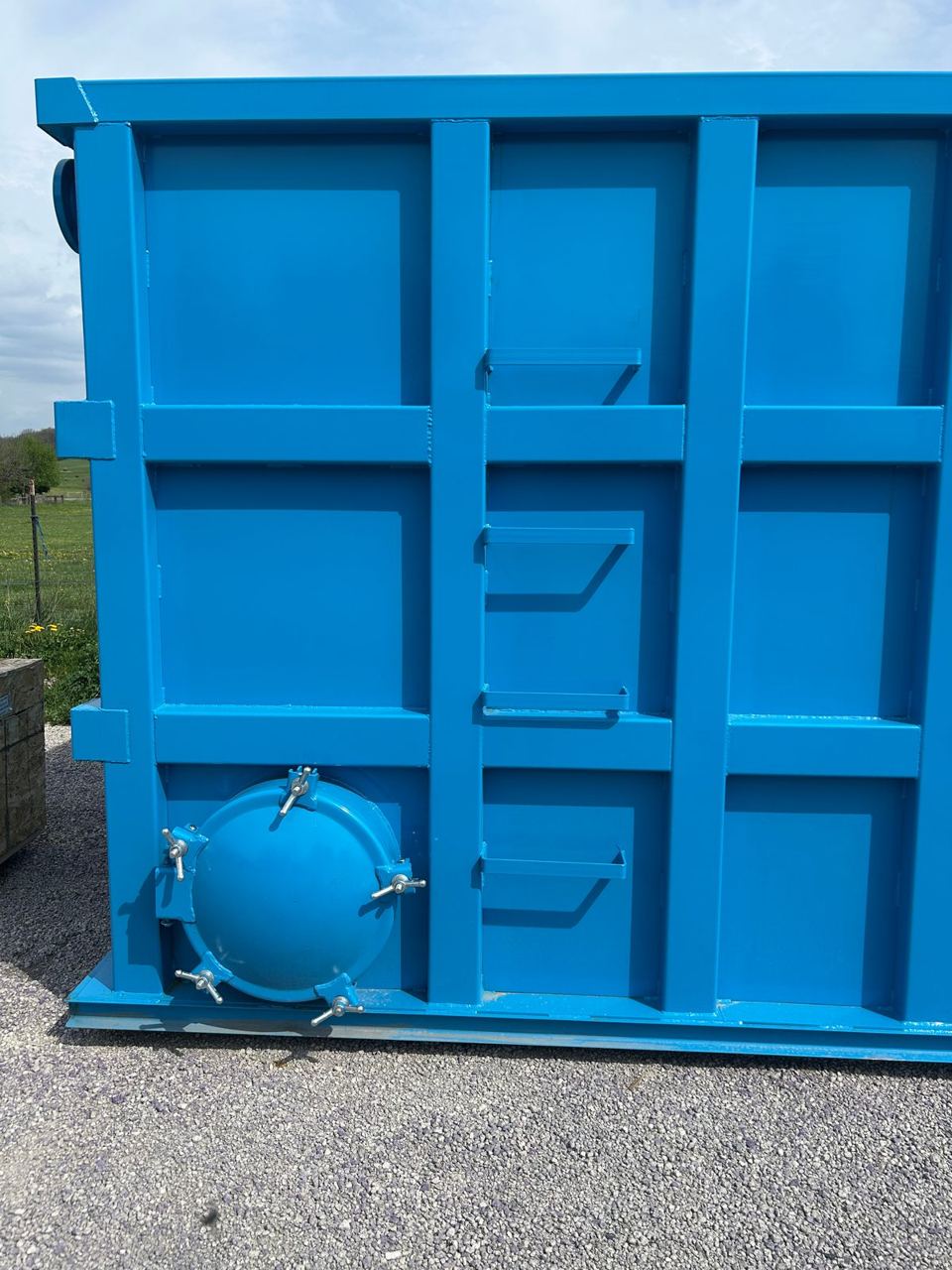

End wall of a blue modular steel tank with a bolted manway and welded step brackets for access, staged outdoors

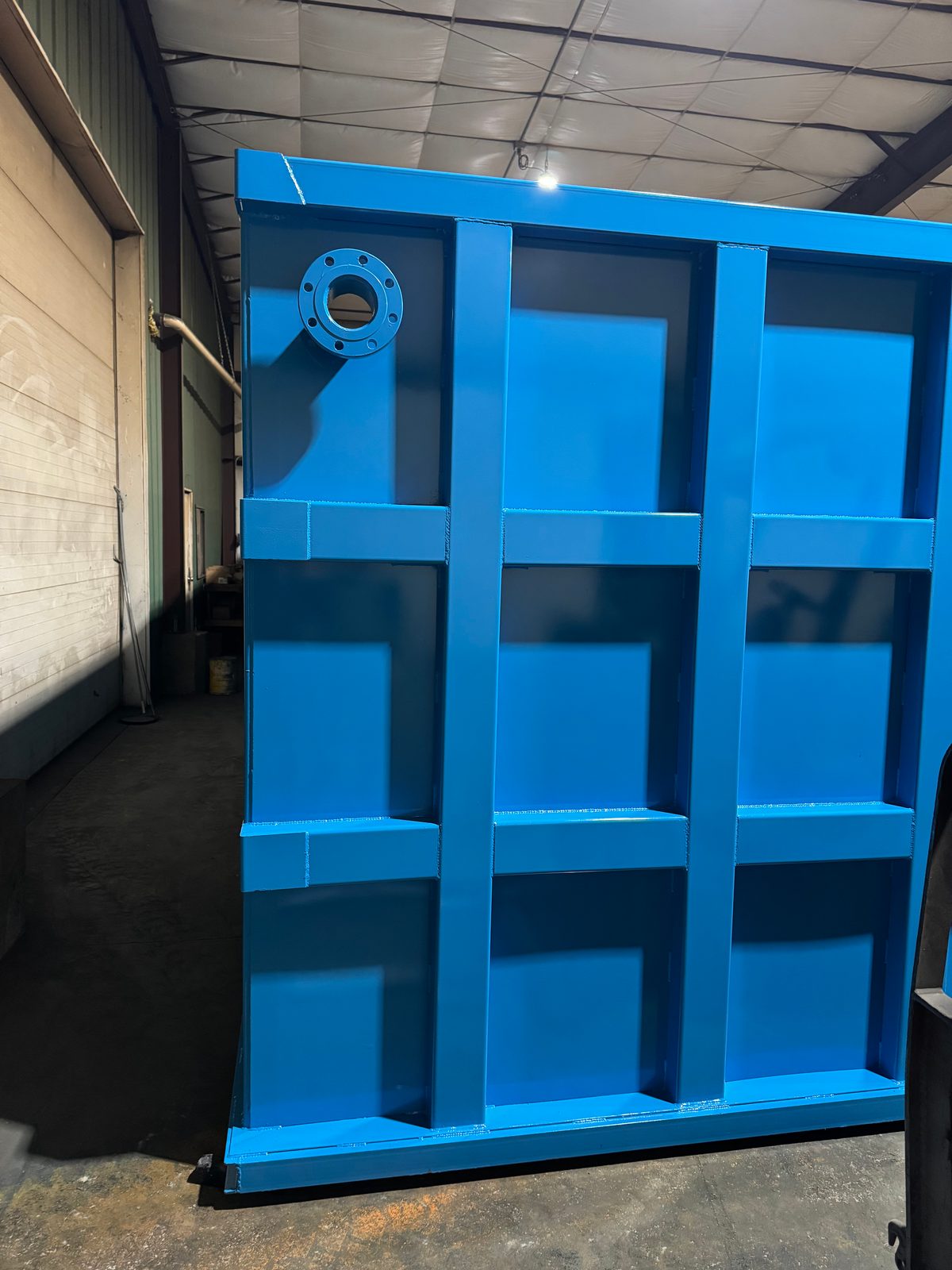

Tall blue modular steel tank end section with a flanged nozzle and three-by-three reinforced panel grid inside the fabrication shop

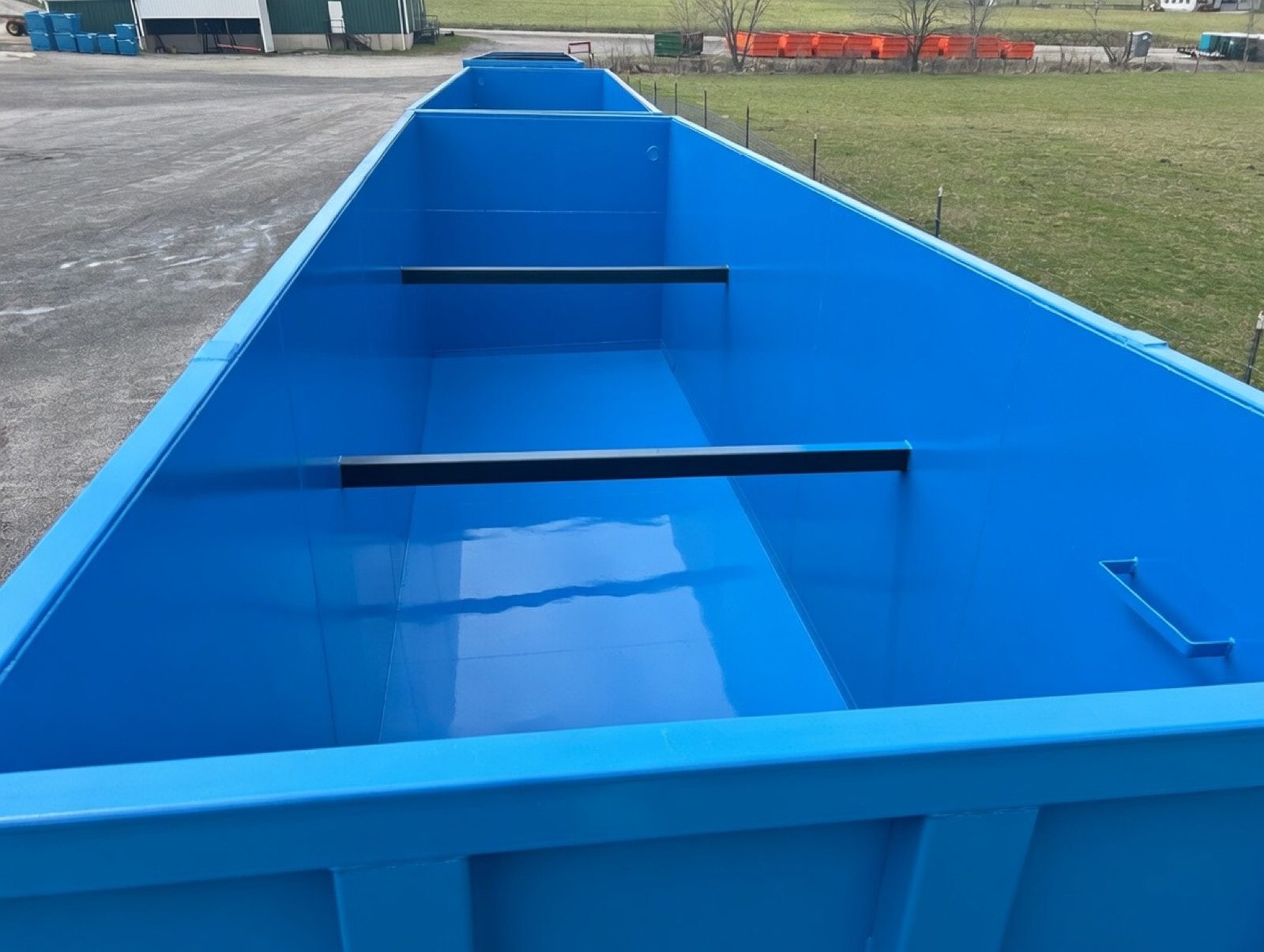

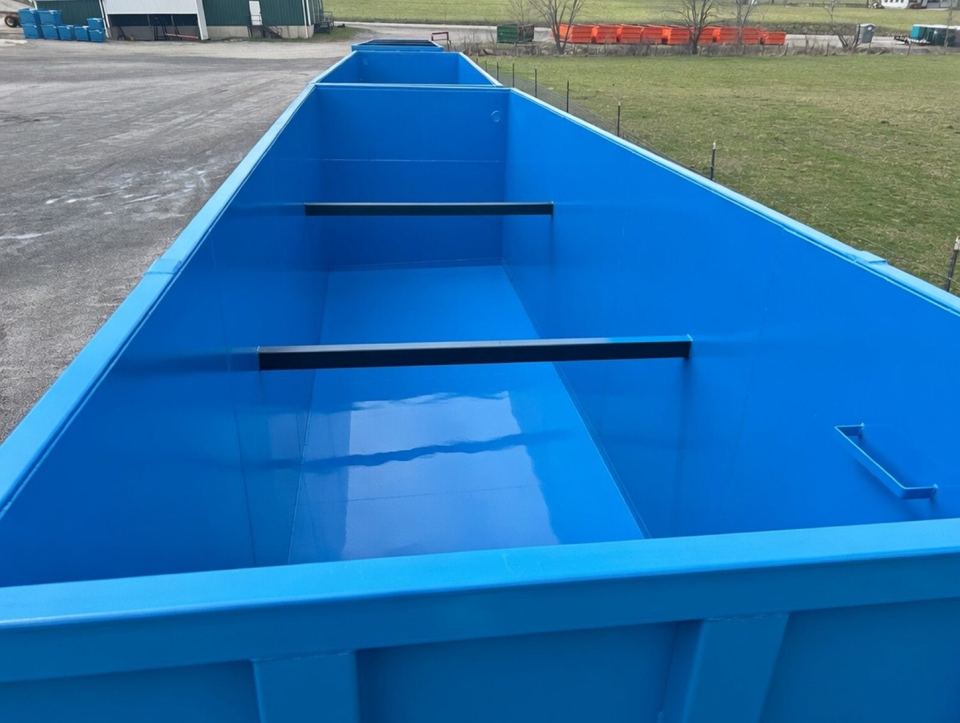

Looking down into the coated interior of an open-top blue modular steel tank with internal baffle bars, staged outdoors

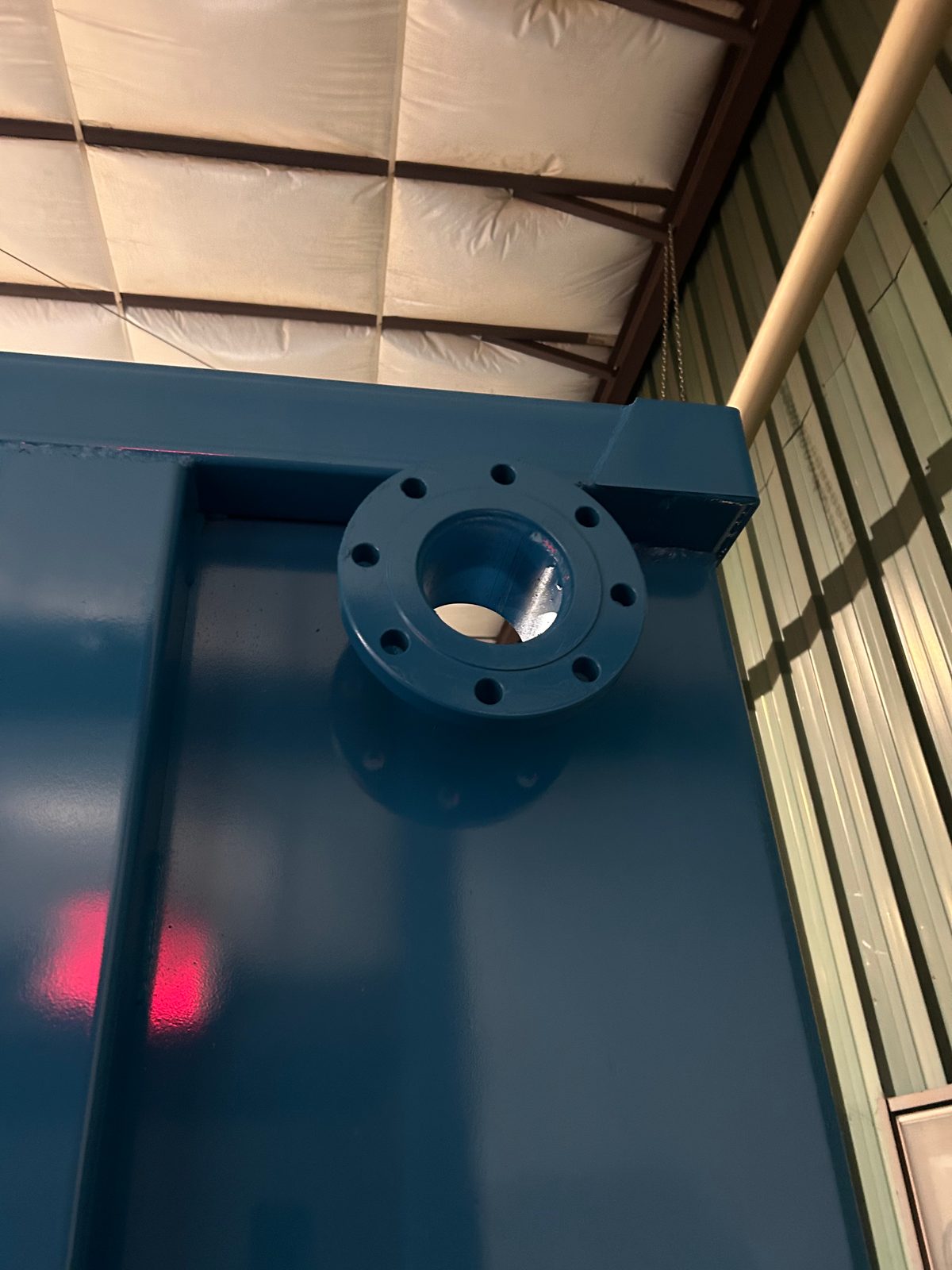

Detail of a bolt-pattern flanged nozzle welded to the top corner of a dark blue modular steel tank in the shop

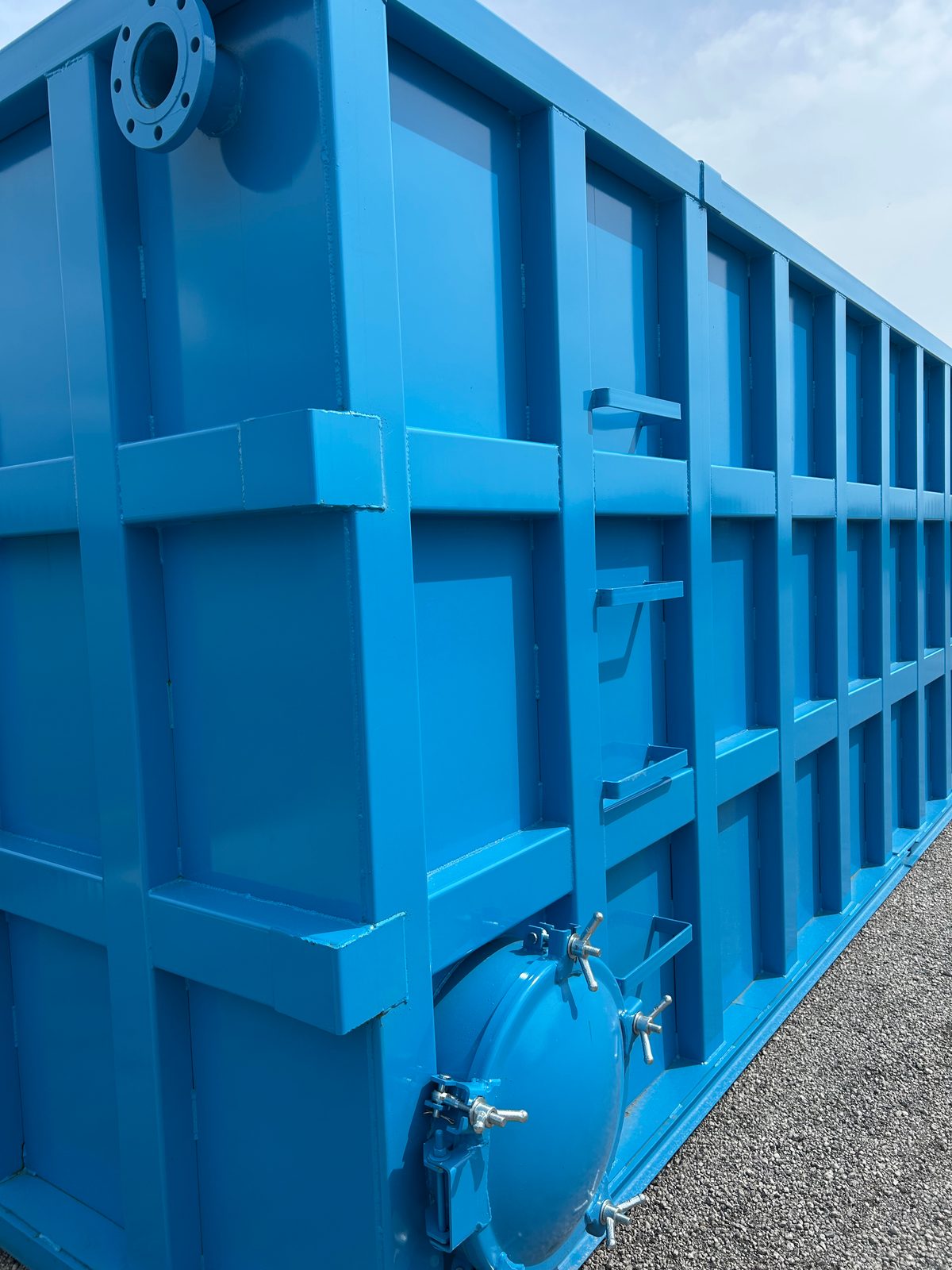

Long side of a blue modular steel tank outdoors showing the reinforced panel grid, top nozzle, and a side-mounted bolted manway

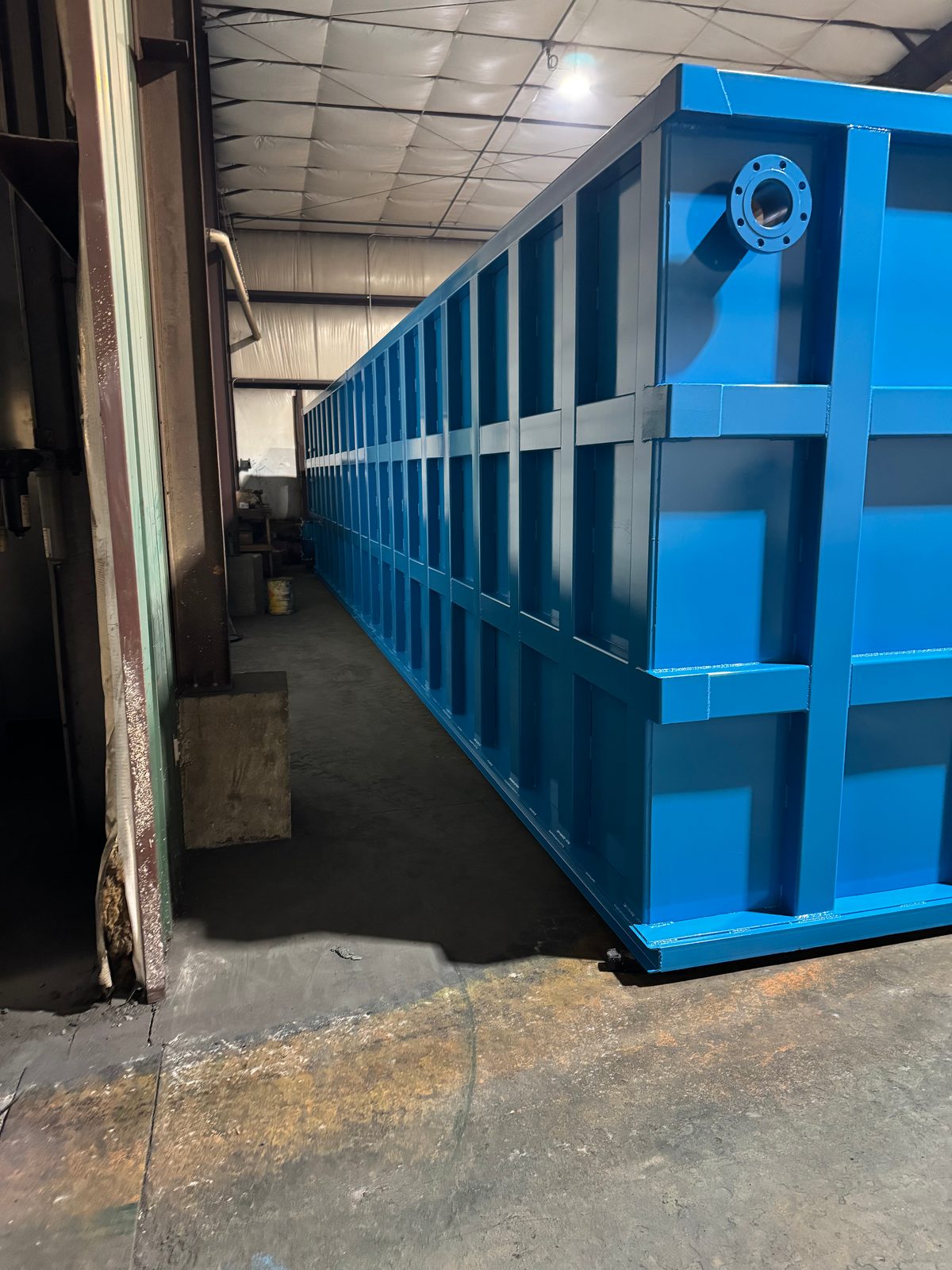

Blue modular steel tank running down a narrow shop aisle, top-corner flanged nozzle in the foreground

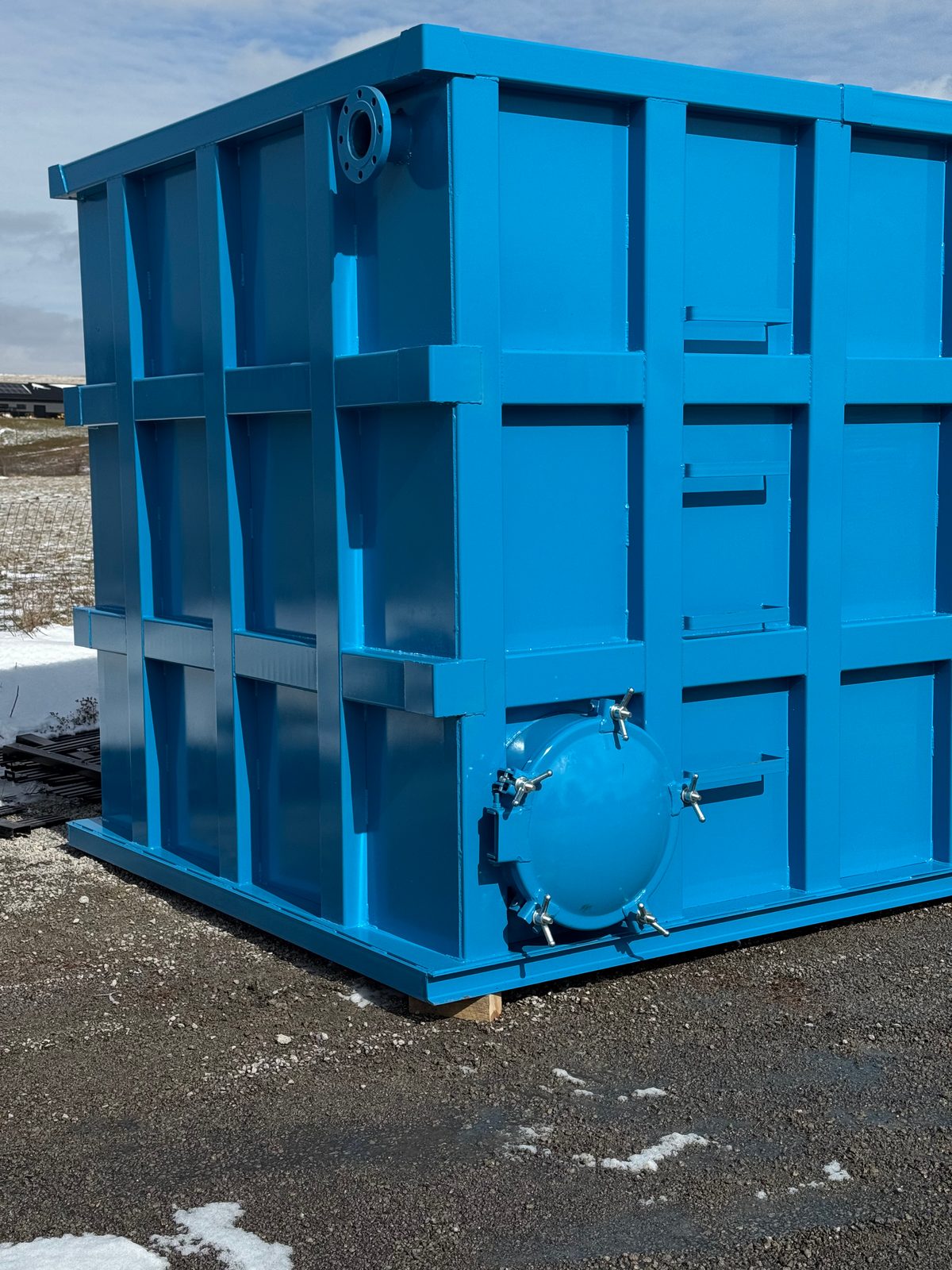

Corner of a blue modular steel tank with a bolted, gasketed manway and wing-nut clamps, staged on a winter lot

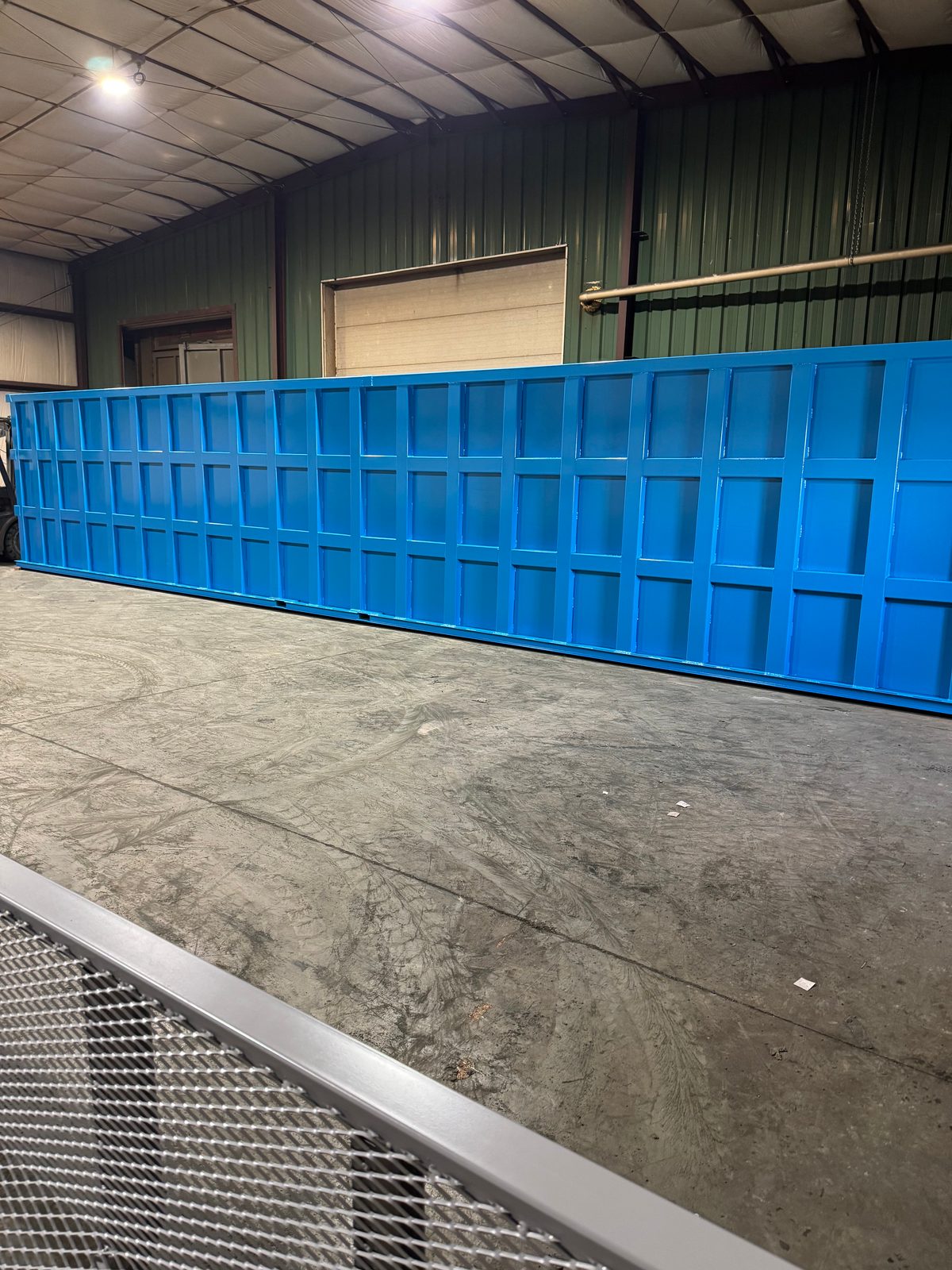

Long low blue modular steel tank in the shop, its full reinforced panel wall facing the camera

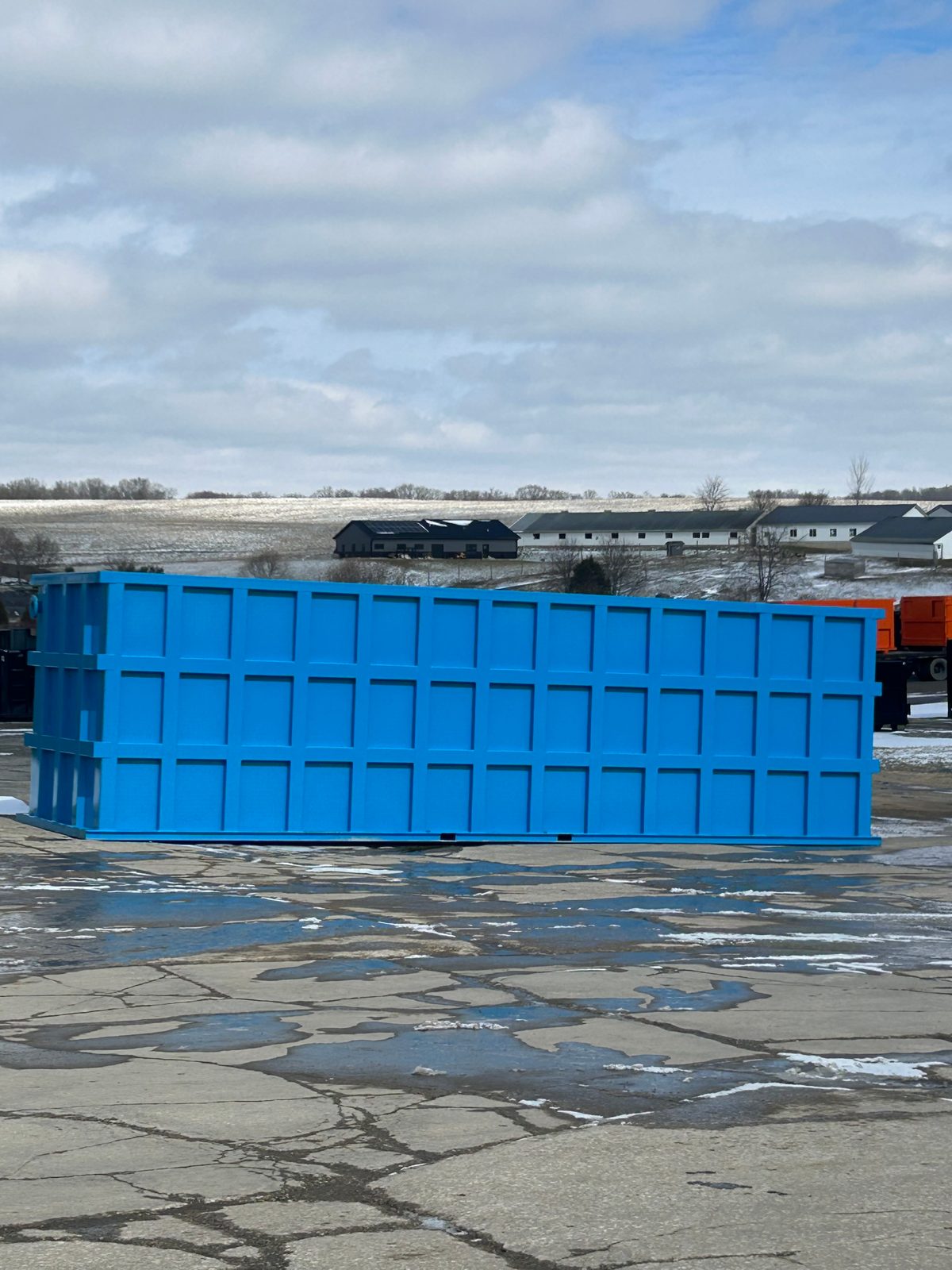

Blue modular steel tank staged on a snow-dusted yard with farm buildings on the horizon

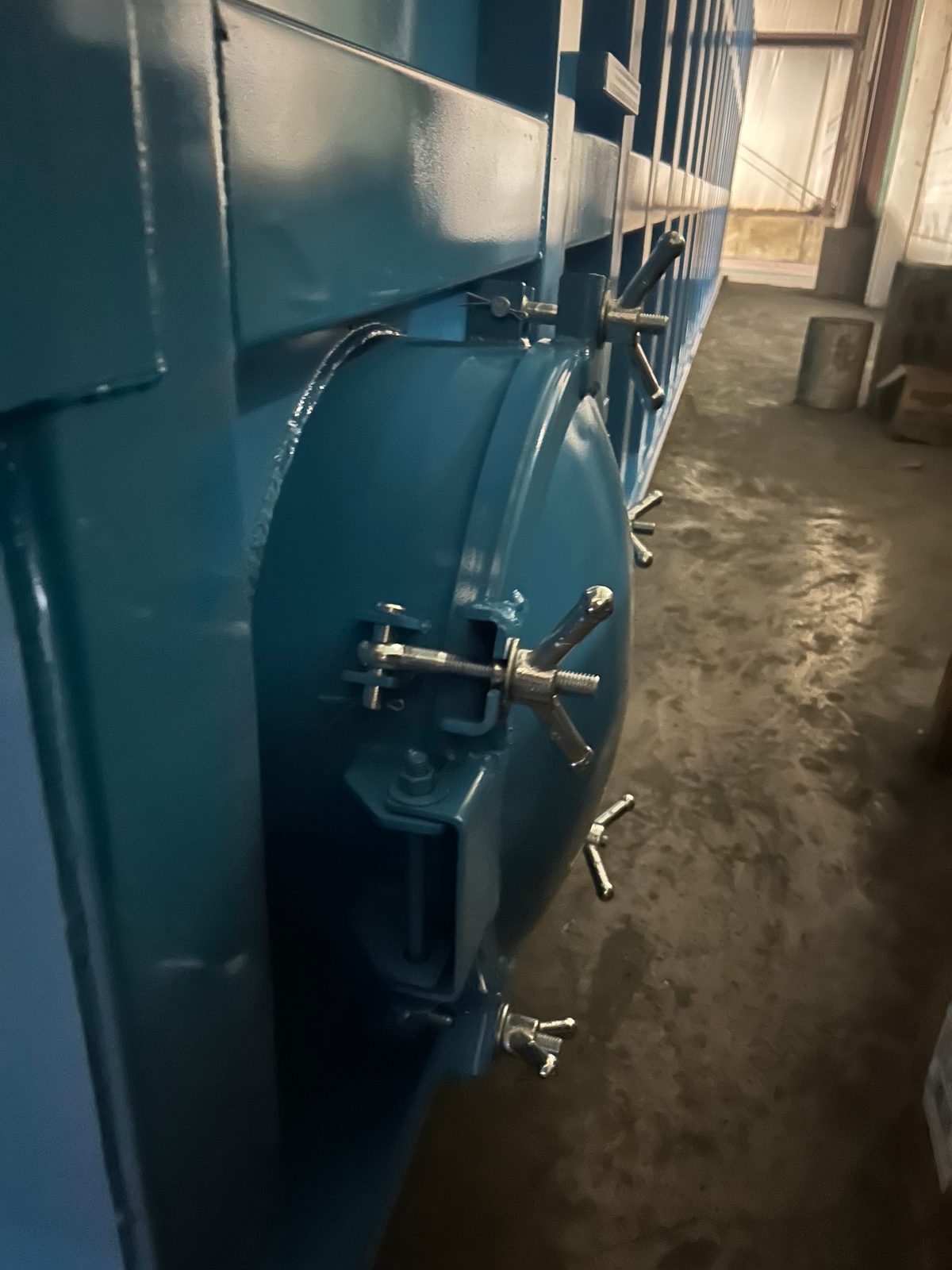

Close-up of a side-mounted bolted manway with swing-bolt wing-nut clamps on a blue modular steel tank in the shop

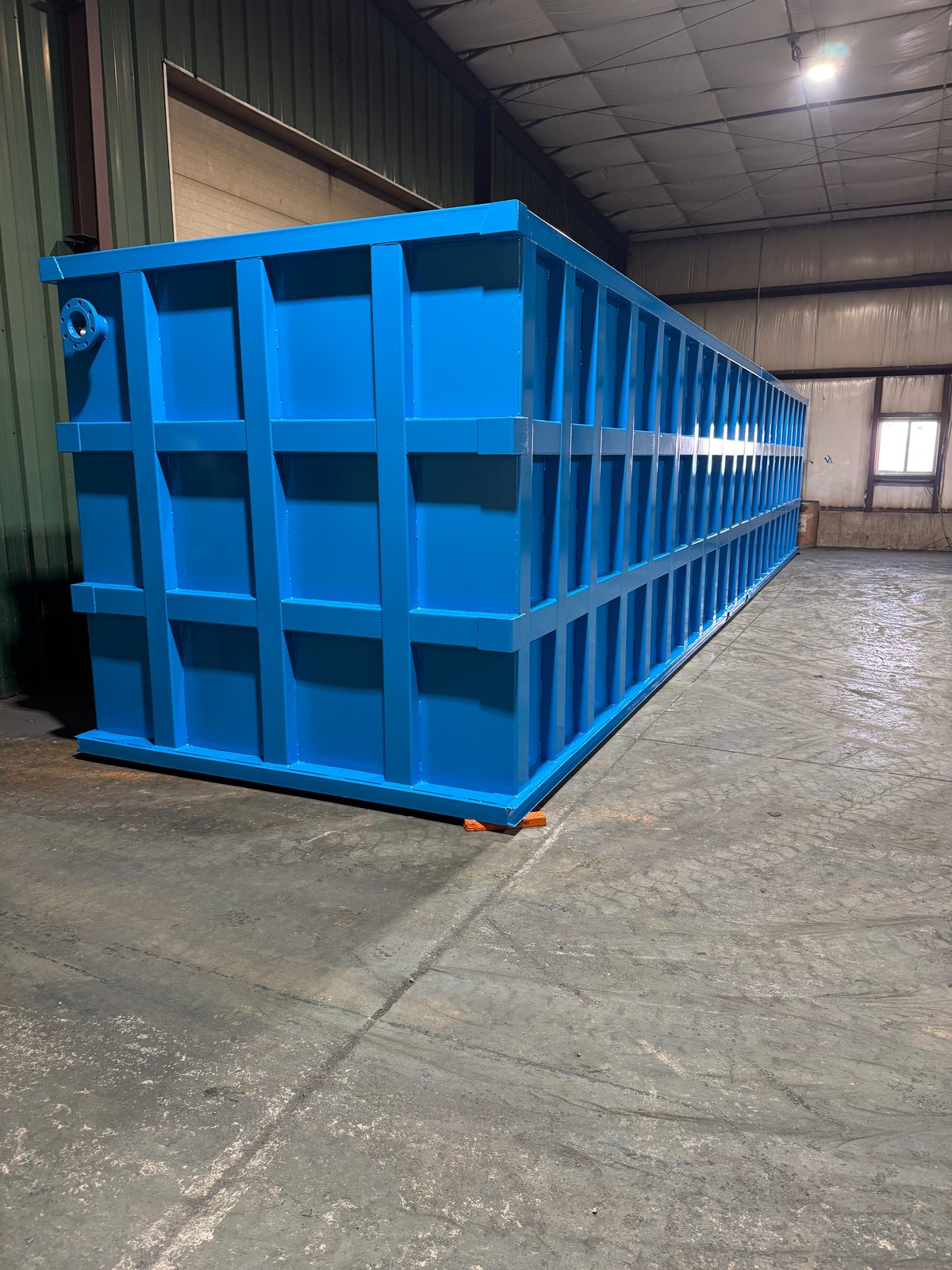

Three-quarter view of a long blue modular steel tank in the shop with a welded lifting lug at the corner

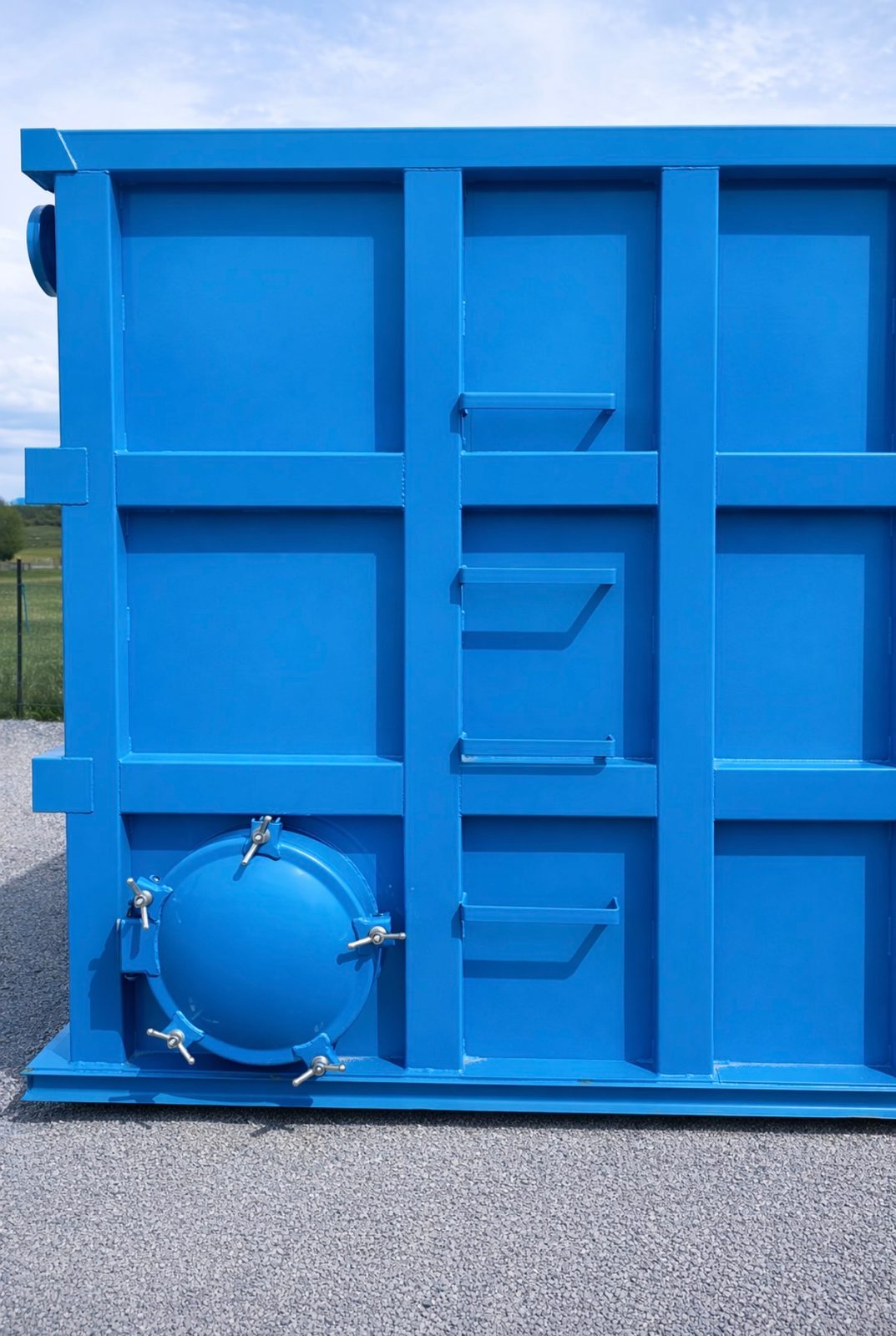

End wall of a blue modular steel tank with a bolted circular manway and welded step brackets, outdoors on gravel

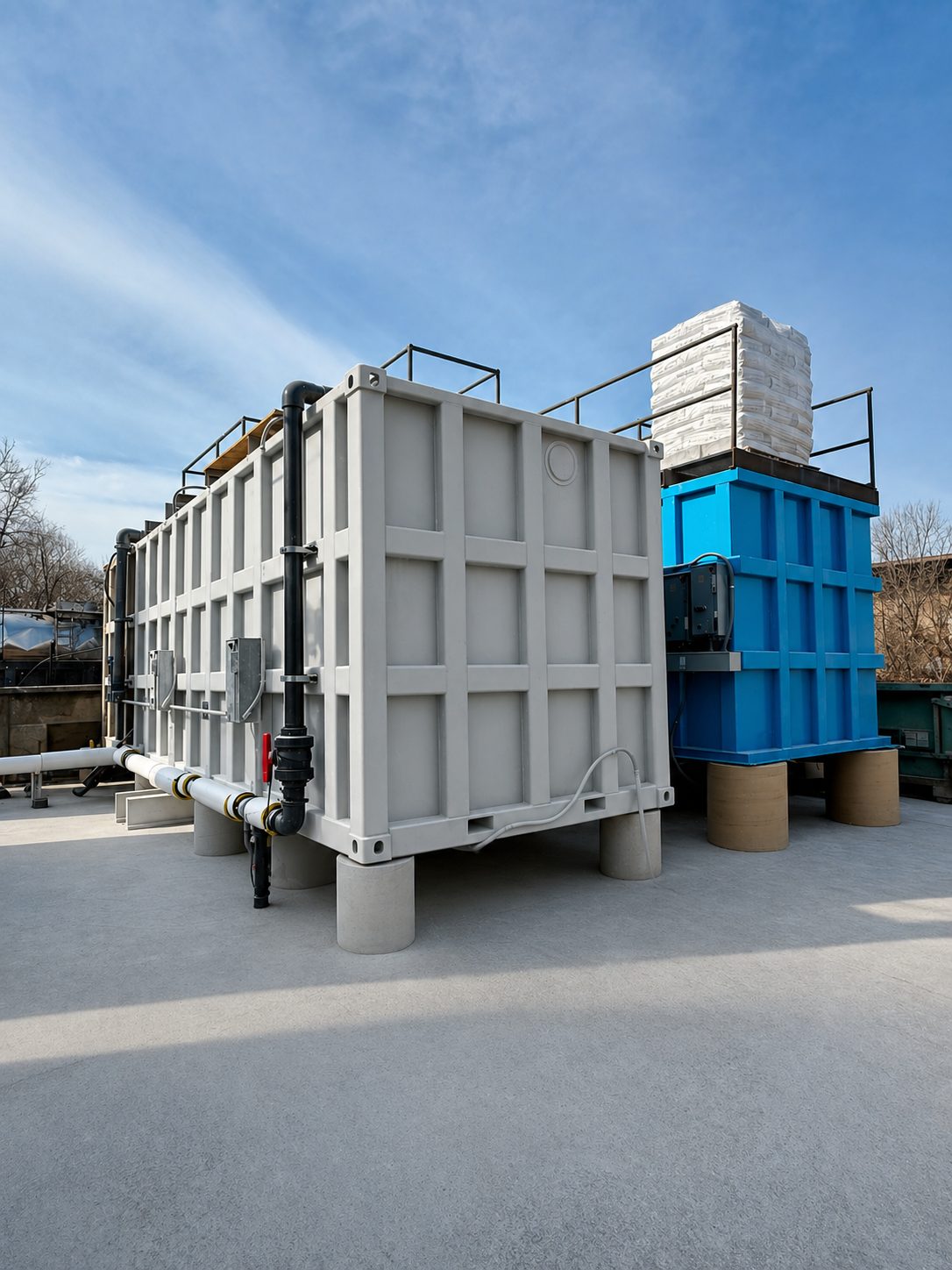

Grey and blue modular steel tanks installed on concrete pier supports with process piping and handrails at a water-treatment site
Scroll to browse projects
AWS D1.1
Structural welding code — steel
ISO 9001
Quality management systems
AWWA
Water-storage design references
ASCE 7
Wind, seismic, and snow loads
OSHA 1910
Field safety & fall protection
Frequently Asked

Answers before you submit.

Bolted tanks ship as flat panels assembled with bolts and gaskets in the field. Modular tanks ship as shop-welded sections that are crane-set and compression-sealed at the joints, with no field welding. Bolted excels at very large diameters and easy future expansion; modular excels at fast deployment with shop-grade weld and coating quality. We will recommend the right approach for your site, schedule, and service.
It depends on size and site access, but moving welding and coating into the plant typically removes weeks of weather-sensitive field work and lets foundation and fabrication run in parallel. We give you a realistic field-set window with the quote.
Modules are crane-set and compression-sealed at the stacking joints — there is no field welding. Moving every structural weld and the coating into the shop is the entire point of modular: each weld is laid under fixtures with controlled heat input and documented inspection, then the finished modules are simply set and sealed on site.
Both. We can deliver modules to your erector or provide supply-and-set with single-point accountability, bundled with foundations, coatings, covers, and accessories.
Ready When You Are

One source. Every line.

Tanks, covers, coatings, accessories, and forensic review combine in a single configured quote. Give us 24 hours and a project address.

Build Your Quote → Call 330-265-1776
